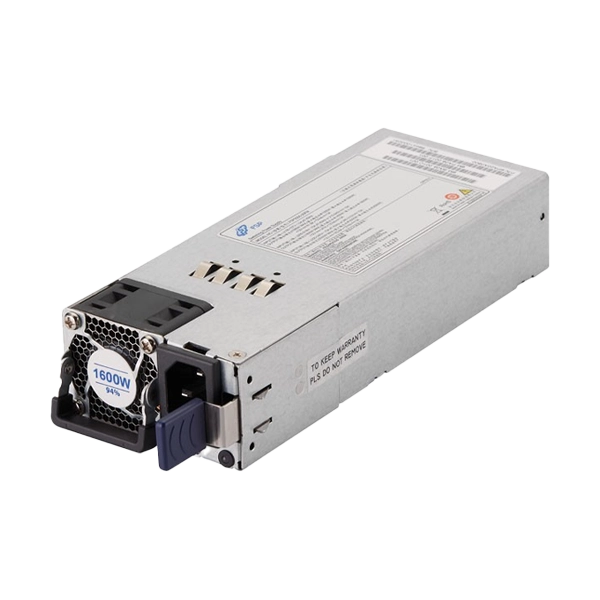

FSP 1600W Titanium CRPS Power Modules SMPS
- Authorized Distributor
- Quality guaranteed
FSP 1600W Titanium ?RPS Power Modules SMPS
FEATURES
- Low iTHD.
- Working temperature: 0 to 55?.
- Design for 5,000 meters above sea level.
- Support OCP, OTP and OVP circuit protection.
- Short circuit protection on all outputs.
- Resettable power shut down.
- MTBF: 250K hours of continuous operation at 55?, 75% output load.
SPECIFICATIONS
| Brand | FSP |
| Modal | FSP1600-20HM |
| Color | White |
| Model | FSP1600-20FM |
| Power Output | 1600 Watts |
| Form Factor | CRPS (Common Redundant Power Supply) |
| Efficiency Certification | 80 PLUS Titanium (up to 96%) |
| Main Output Voltage | +12V DC |
| Standby Output | +12Vsb (standby) |
| Input Voltage Range | 90 ~ 264 VAC (Full Range) |
| Input Frequency | 47 ~ 63 Hz |
| Input Current (Max) | ~10A @ 115V / ~5A @ 230V |
| Power Factor | > 0.9 (Active PFC at full load) |
| Hot-Swappable | Yes |
| Redundancy Support | Yes (in CRPS-compatible systems) |
| Communication Interface | PMBus 1.2 |
| Protections | OVP, OCP, OPP, SCP, OTP (Full Protection) |
| Cooling | Internal Smart Fan with Thermal Control |
| Operating Temperature | 0? to 50? |
| Storage Temperature | -40? to 70? |
| Humidity (Non-Condensing) | 5% to 90% RH |
| Safety Certifications | UL, TUV, CB, CE, CCC, FCC, RoHS |
| Dimensions (L x W x H) | Approx. 185 x 73.5 x 40 mm |
| MTBF | > 100,000 hours at 25? (Calculated) |
| Cooling Fan Control | PWM-controlled for noise and thermal optimization |
| Warranty | 3 Years |
| Note | Price, Feature and Specifications Are Subject To Change Without Notice. |
