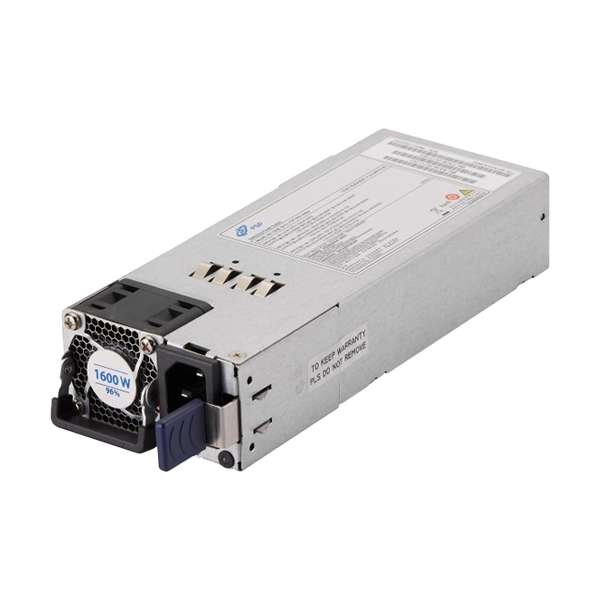

FSP 1600W Titanium CRPS Power Modules SMPS
Original price was: ₹90,999.00.₹22,699.00Current price is: ₹22,699.00.
FSP 2000W Titanium CRPS Power Modules SMPS
Original price was: ₹99,999.00.₹25,999.00Current price is: ₹25,999.00.
FSP 1600W Platinum CRPS Power Module SMPS
The FSP 1600W Platinum CRPS Power Module is a high-efficiency, hot-swappable server power supply designed for enterprise and data center applications. Compliant with the Common Redundant Power Supply (CRPS) standard, it delivers up to 1600 watts of power with 80 PLUS Platinum efficiency
Original price was: ₹70,999.00.₹21,099.00Current price is: ₹21,099.00.
Enquiry
-
Official retailer
-
Quality guaranteed
-
Free delivery from $99
-
Free returns is available
Gaming provides mental relaxation and stress relief.
Engaging in video games helps calm the mind.
FSP 1600W Platinum CRPS Power Module SMPS
FEATURES
- Low iTHD.
- Working temperature: 0 to 55?.
- Design for 5,000 meters above sea level.
- Support OCP, OTP and OVP circuit protection.
- Short circuit protection on all outputs.
- Resettable power shut down.
- MTBF: 250K hours of continuous operation at 45?, 75% output load.
SPECIFICATIONS
| Brand | FSP |
| Modal | FSP1600-20FM |
| Color | White |
| Form Factor | CRPS (Common Redundant Power Supply) |
| Rated Power Output | 1600 Watts |
| Input Voltage Range | 90 ~ 264 VAC |
| Input Frequency | 47 ~ 63 Hz |
| Input Current (Max Load) | 12A @ 115V / 7A @ 230V |
| Efficiency Certification | 80 PLUS Platinum |
| Efficiency | Up to 94% efficiency |
| Power Factor Correction (PFC) | Active PFC > 0.9 |
| Hot-Swappable | Yes |
| Output Voltage | +12V main, +12Vsb standby |
| Standby Output | +12Vsb / 3.6A |
| Communication Protocol | PMBus 1.2 |
| Protections | OCP, OVP, SCP, OTP, OPP |
| Cooling Method | Built-in fan |
| Operating Temperature | 0? to 50? |
| Storage Temperature | -40? to 70? |
| MTBF (at 25?) | > 100,000 hours |
| Dimensions (W x D x H) | 73.5 x 185 x 40 mm (2.89 x 7.28 x 1.57 in) |
| Weight | Approx. 1.2 kg |
| Safety Certifications | UL, cUL, TUV, CB, CCC, CE |
| EMI/EMC | FCC Class A, EN55032, CISPR 32 |
| Application | Data centers, servers, storage systems, enterprise networking equipment |
| Warranty | 3 Years |
| Note | Price, Feature and Specifications Are Subject To Change Without Notice. |
