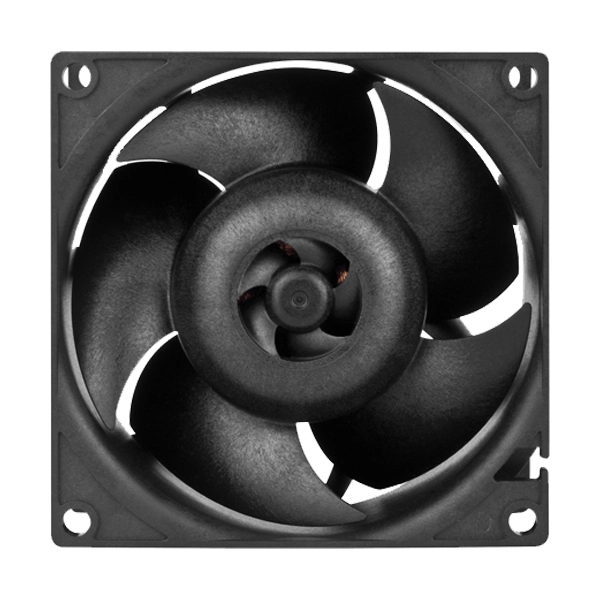

Arctic S8038-7K Server Fan
FEATURES
Dual Ball Bearing Design
The S8038-7K fan uses dual ball bearings for enhanced durability and reliable performance, while offering better resistance to heat and dust.
Wide PWM Speed Control
Supports PWM and voltage-based speed control with a range up to 7000 RPM, delivering an excellent balance of cooling efficiency and low noise levels.
High Static Pressure & Airflow
With 25 mmH₂O static pressure and airflow up to 118.93 m³/h, the S8038-7K performs efficiently as both a radiator fan and case cooling fan.
Optimized for 2U Server Systems
Designed to fit 2U server chassis, making it ideal as a replacement or upgrade for CPU cooling, radiator setups, and system ventilation.
Flexible Connectivity & Installation
Features a standard 4-pin connector compatible with 2-pin and 3-pin headers, while the 30 cm cable provides flexible installation options.
SPECIFICATION
| Brand | Arctic |
| Model | ACFAN00288A |
| Cable Color | Black |
| Product Name | ARCTIC S8038-7K |
| Product Type | Server Cooling Fan |
| Fan Size | 80 mm |
| Dimensions | 80 × 80 × 38 mm |
| Bearing Type | Dual Ball Bearing |
| Fan Speed | 500 – 7000 RPM |
| Speed Control | PWM Controlled |
| Airflow | 70 CFM / 118.93 m³/h |
| Static Pressure | 25 mmH₂O |
| Connector Type | 4-Pin PWM |
| Compatibility | 2-Pin / 3-Pin / 4-Pin Headers |
| Rated Voltage | 12V DC |
| Current | 0.5 A | 12.0 V DC |
| Startup Voltage | 3.6V DC |
| Cable Length | 300 mm |
| Material Standard | UL94 V-0 |
| Operating Temperature | -10°C to 70°C |
| Cooling Design | Active Motor Cooling |
| Housing Material | Brass Bearing Housing |
| Application | Servers, NAS, Industrial Systems, Radiators |
| Server Compatibility | 2U Server Chassis |
| Mounting Support | Standard 80mm Fan Mount |
| Reliability | Continuous 24/7 Operation |
| Warranty | 6 Years |
| Note | * Features, Price, Specifications are subject to change without notice. |
