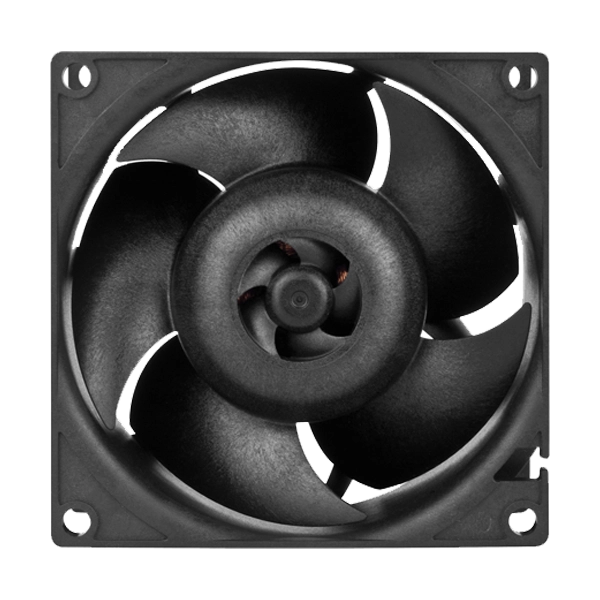

Arctic S8038-10K Server Fan
FEATURES
Durable Dual Ball Bearing Design
The S8038-10K fan features dual ball bearings for extended lifespan, reliable performance, and increased resistance to heat and dust.
Ultra-Wide PWM Speed Range:
Supports PWM and voltage control with speeds up to 10000 RPM, providing an excellent balance of maximum cooling performance and optimized noise levels.
High Static Pressure & Airflow
Delivering 51 mmH₂O static pressure and airflow up to 173.30 m³/h, the S8038-10K is ideal for use as both a radiator cooling fan and high-performance case fan.
Designed for 2U Server Chassis
Perfectly fits 2U server systems and works as an efficient replacement or upgrade for CPU coolers, radiators, and system ventilation setups.
Flexible Compatibility & Installation
Equipped with a standard 4-pin PWM connector compatible with 2-pin and 3-pin headers, while the 30 cm cable ensures flexible mounting and cable management.
SPECIFICATION
| Brand | Arctic |
| Model | ACFAN00279A |
| Product Name | ARCTIC S8038-10K |
| Product Type | Server Cooling Fan |
| Fan Size | 80 mm |
| Dimensions | 80 × 80 × 38 mm |
| Bearing Type | Dual Ball Bearing |
| Speed Range | 500 – 10000 RPM |
| Speed Control | PWM Controlled |
| Maximum Airflow | 102 CFM / 173.30 m³/h |
| Static Pressure | 51 mmH₂O |
| Connector Type | 4-Pin PWM |
| Header Compatibility | 2-Pin / 3-Pin / 4-Pin |
| Rated Voltage | 12V DC |
| Rated Current | 1.3A |
| Startup Voltage | 5.8V DC |
| Cable Length | 300 mm |
| Cable Color | Black |
| Housing Material | Brass Bearing Housing |
| Material Standard | UL94 V-0 |
| Operating Temperature | -10°C to 70°C |
| Cooling Technology | Active Motor Cooling |
| Mount Compatibility | Standard 80mm Mount |
| Server Compatibility | 2U Server Chassis |
| Application | Servers, NAS, Industrial Systems, Radiators |
| Continuous Operation | Yes |
| Warranty | 6 Years |
| Note | * Features, Price, Specifications are subject to change without notice. |
