EVGA 750 GQ, 80+ GOLD 750W, Semi Modular, EVGA ECO Mode, 5 Year Warranty
- Authorized Distributor
- Quality guaranteed

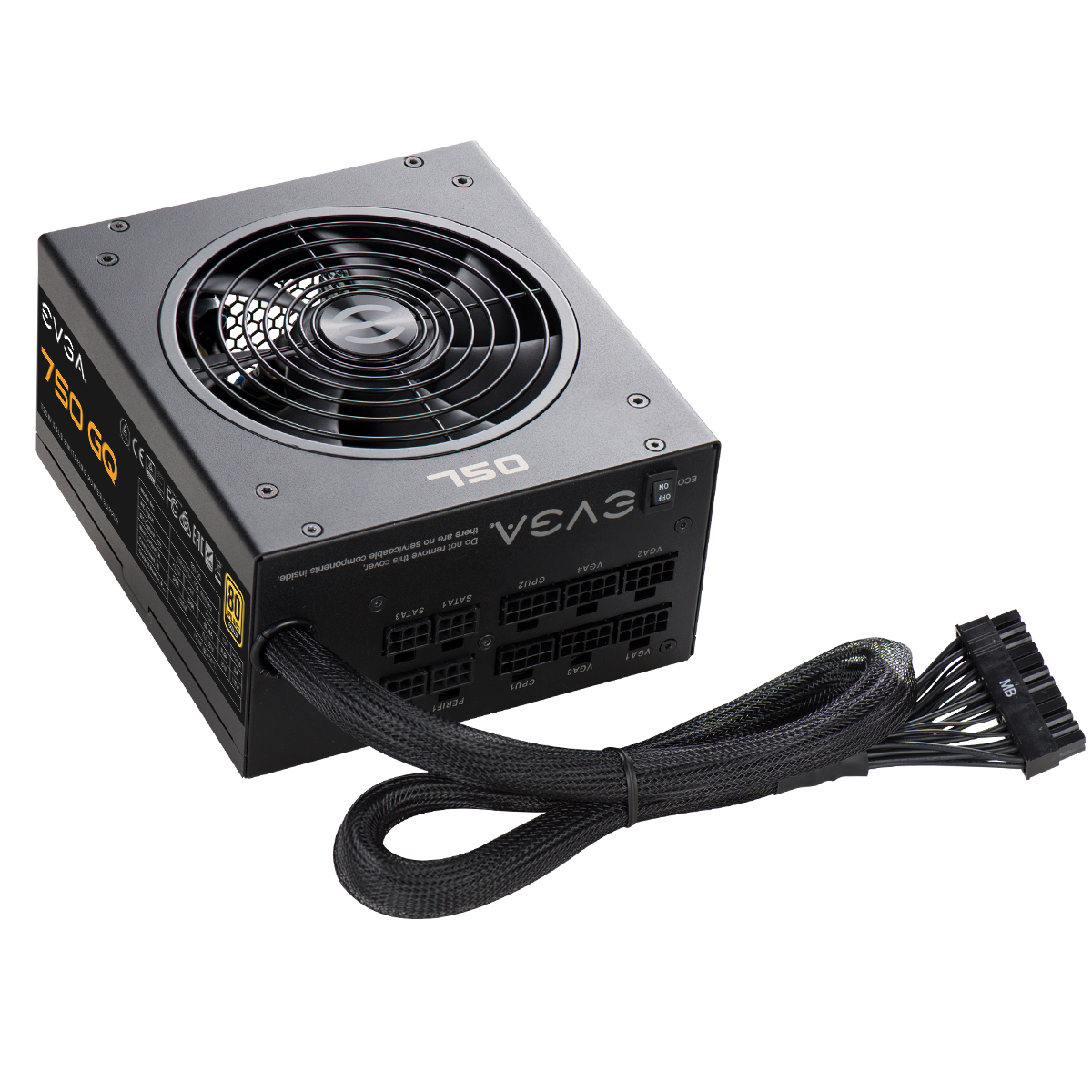

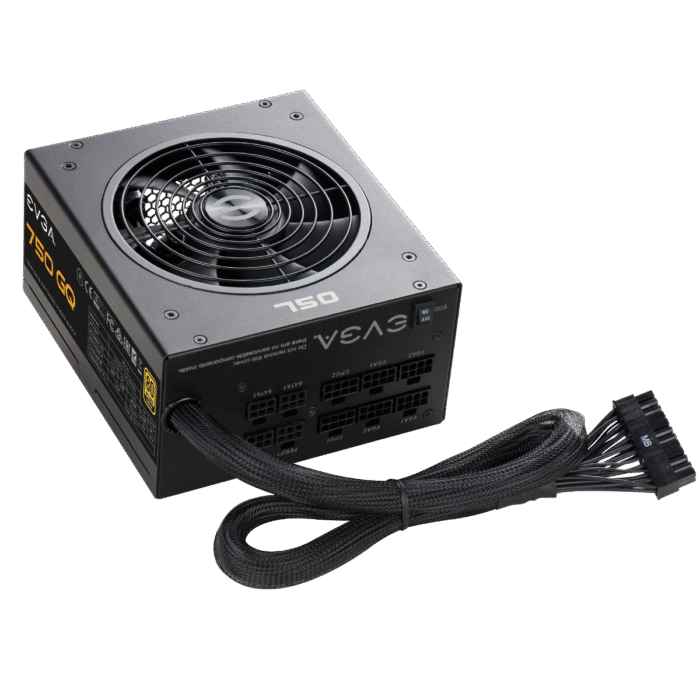

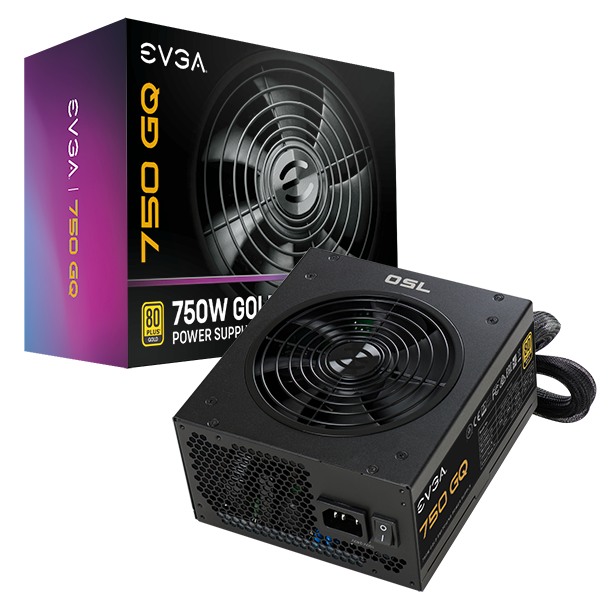

EVGA 750 GQ, 80+ GOLD 750W
FEATURES
SPECCIFICATIONS
Cable Length
| Type | Length |
|---|---|
| ATX Cable | 1x 600mm |
| EPS Cable | 2x 650mm |
| PCIE Cable | 2x 650mm, 750mm, 2x 650mm |
| SATA Cable | 3x 550mm, 650mm, 750mm |
| Four-Pin Peripheral Cable | 1x 550mm, 650mm, 750mm |
| Floppy Adapter | 1x 100mm (m) |
| AC Power | 1x 1500mm |
| Modular Cable Type | Semi-Modular |
Connector Quantity
| Connector | Quantity |
|---|---|
| 24 Pin ATX | 1x |
| EPS (CPU) | 2x 8pin (4+4) |
| PCIE | 6x 8pin (6+2) |
| SATA | 9x |
| Four-Pin Peripheral | 3x |
| Floppy | 2x |
Power Specs
| AC Input | 100 – 240 VAC, 10A, 50 – 60 Hz | |||||
|---|---|---|---|---|---|---|
| Rail | +3.3V | +5V | +12V | +5Vsb | -12V | |
| Max Output | 24A | 24A | 62.4A | 3A | 0.5A | |
| 120W | 748.8W | 15W | 6W | |||
| Total | 750W @ +50°C | |||||
Additional Details
| Operating Temperature | 0° to 50°C |
|---|---|
| Japanese Capacitors | 100% |
| ECO Mode | Yes |
| MTBF | 100,000 Hours |
| Net Weight | 7 lbs |
| Size | 85mm (H) x 150mm (W) x 165mm (L) |
| Approvals | TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement |
| Fan Size / Bearing | 135mm Fluid Dynamic Bearing |
Product Warranty
This product comes with a 5 year limited warranty with registration.
EVGA offers several warranty solutions for our customers to choose from. Please refer to the suffix of the part number and our Warranty Terms for details.
One Click to Visit Our Social Media Handle ?
YOU MAY ALSO LIKE…
Gamdias Aura GK2 60 Percent Black White Mechanical Gaming Keyboard
Gamdias Hermes E5 2-IN-1 Keyboard and Mouse Combo
RELATED PRODUCTS

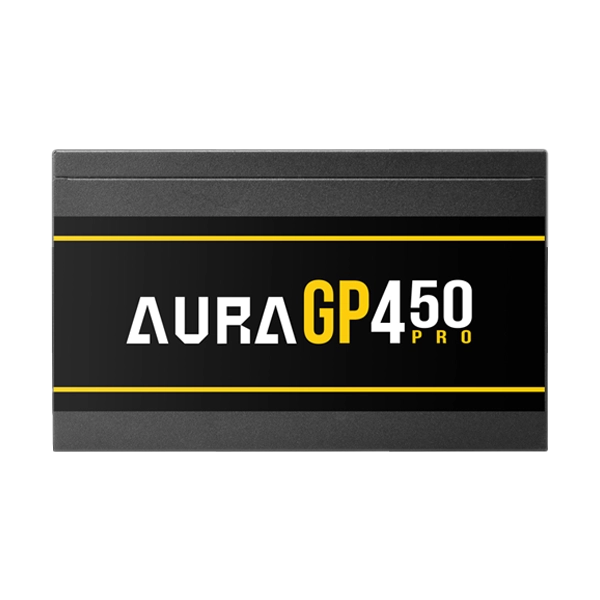

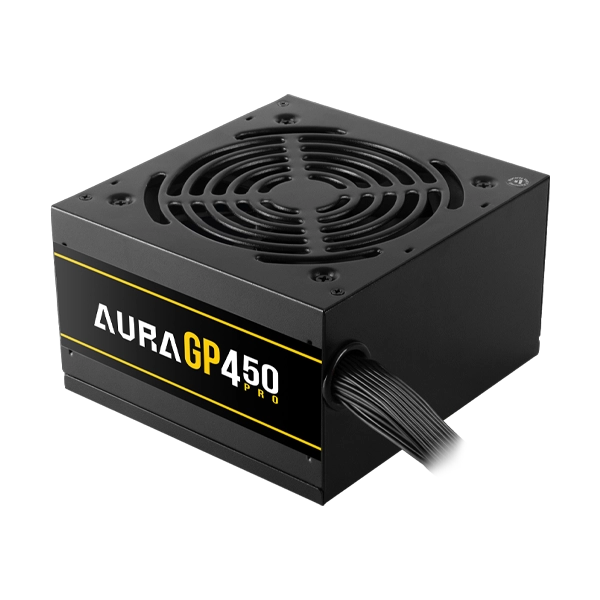

GAMDIAS Aura GP450 Pro SMPS
