The EVGA 1000 P5 delivers 1000W of reliable, efficient power with 80+ Platinum certification. Fully modular for clean cable management, it features 100% Japanese capacitors, quiet operation, and robust protections?perfect for high-performance gaming and workstation builds.

Arctic Xtender VG White Mid-Tower Case
₹40,999.00 Original price was: ₹40,999.00.₹21,999.00Current price is: ₹21,999.00.

Gamdias Aether M1 Laptop Cooling Pad
₹8,999.00 Original price was: ₹8,999.00.₹1,799.00Current price is: ₹1,799.00.
EVGA 1000 P5, 80 Plus Platinum Fully Modular
₹28,990.00 Original price was: ₹28,990.00.₹14,999.00Current price is: ₹14,999.00.
Enquiry
SKU:
220-P5-1000-X1
Categories: 80 Plus Bronze, 80 Plus Platinum, Power Supply
Tags: 220-P5-1000-X1, 80 Plus Platinum Fully Modular, EVGA 1000 P5
-
Official retailer
-
Quality guaranteed
-
Free delivery from $99
-
Free returns is available
Gaming provides mental relaxation and stress relief.
Engaging in video games helps calm the mind.

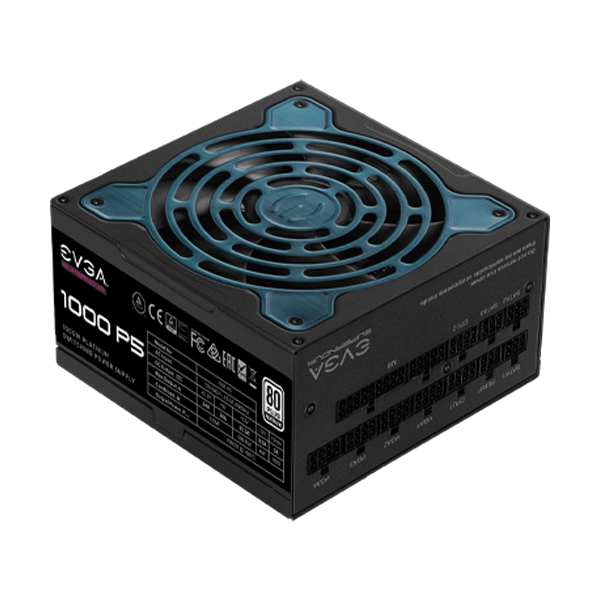

EVGA 1000 P5, 80 Plus Platinum Fully Modular
FEATURES
-
Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support
-
Fully Modular to reduce clutter and improve airflow
-
NVIDIA SLI & AMD Crossfire Ready
-
80 PLUS Platinum certified, with 92% (115VAC) / 94% (220VAC~240VAC) efficiency or higher under typical loads
-
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
-
100% Japanese Capacitors ensure long-term reliability
-
Active Clamp +DC to DC design for efficient operation
-
EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
-
Active Power Factor Correction
-
Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.
- DC-DC Converter improves 3.3V/5V stability
SPECIFICATIONS

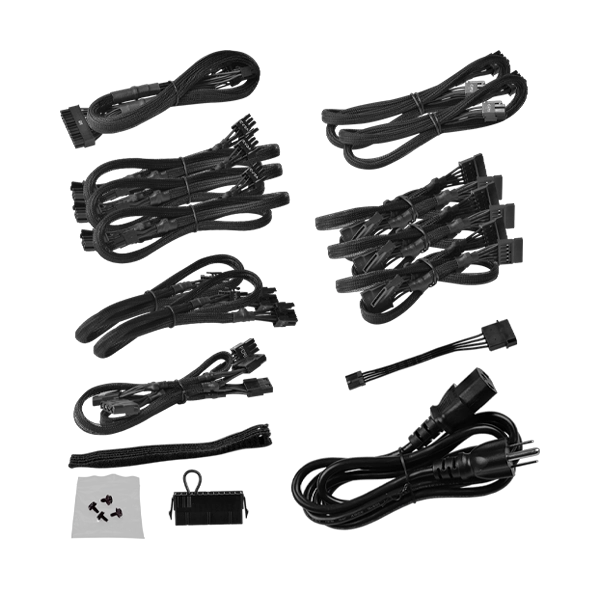

Cable Length
ATX Cable | 1x 600mm |
EPS Cable | 2x 700mm |
PCIe Cable | 3x 700mm, 850mm ; 2x 700mm |
SATA Cable | 3x 550mm, 650mm, 750mm, 850mm |
Four-Pin Peripheral Cable | 1x 550mm, 650mm, 750mm, 850mm |
Floppy Adapter | 1x 100mm |
AC Power | 1x 1500mm |
Modular Cable Type | Full |
Connector Quantity
24 Pin ATX | 1x 24pin |
EPS (CPU) | 2x 8pin (4+4) |
PCIe | 8x 8pin (6+2) |
SATA | 12x |
Four-Pin Peripheral | 4x |
Floppy | 1x |
Power Specs
AC Input | 100-240V~, 15-8A, 60/50 Hz | ||||
Rail | +3.3V | +5V | +12V | +5Vsb | -12V |
Max Output | 24A | 24A | 83.3A | 3A | 0.5A |
120W | 999.6W | 15W | 6W | ||
Total | 1000W @ +50C |
Additional Details
Operating Temperature | 0? to 50? C |
Japanese Capacitors | 100% |
ECO Mode | Yes |
MTBF | 100,000 Hours |
Net Weight | 7.20 lbs |
Size | 86mm (H) x 150mm (W) x 150mm (L) |
Approvals | TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement |
Fan Size / Bearing | 135mm Fluid Dynamic Bearing |
One Click to Visit Our Social Media Handle ??Instagram
Be the first to review “EVGA 1000 P5, 80 Plus Platinum Fully Modular” Cancel reply
RELATED PRODUCTS
EVGA 750 BR 750 Watt 80 Plus Bronze SMPS

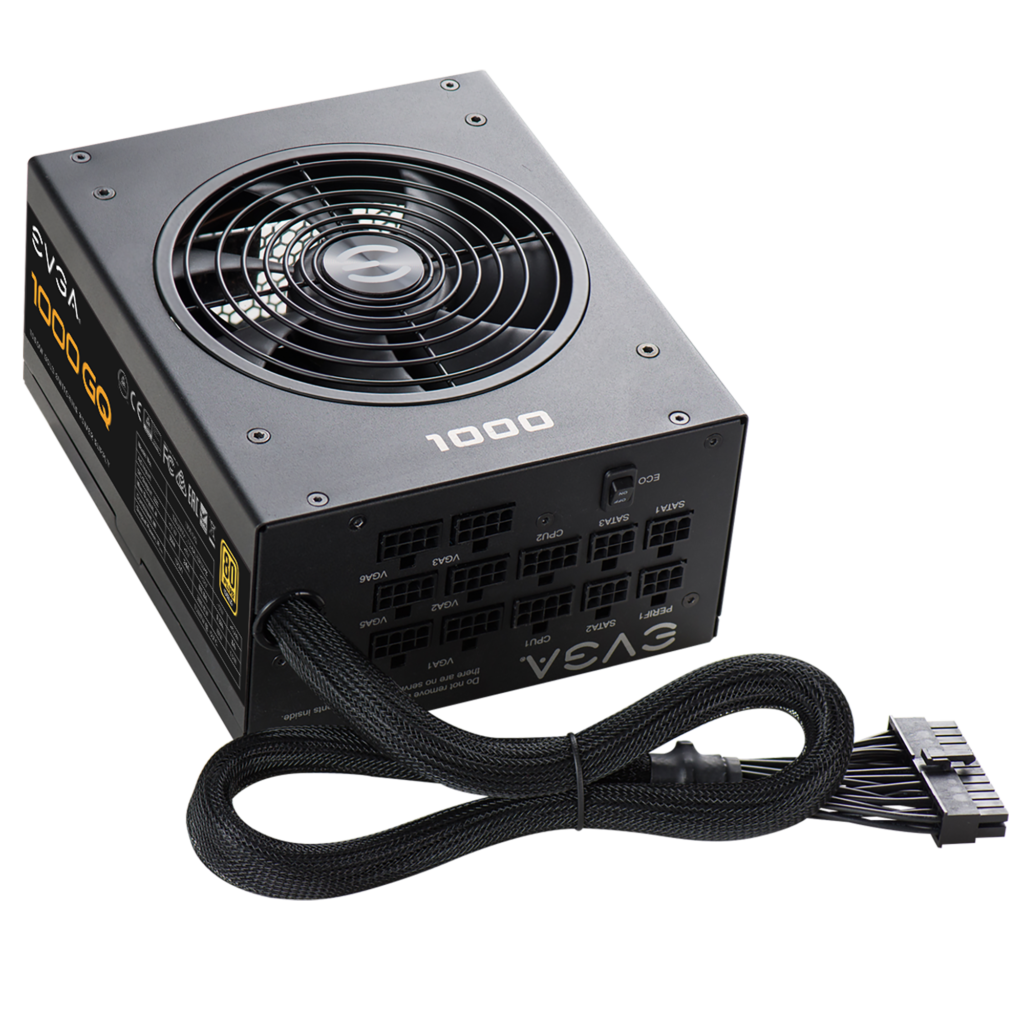

EVGA SuperNova 1000 GT 1000 Watt 80 Plus Gold SMPS
