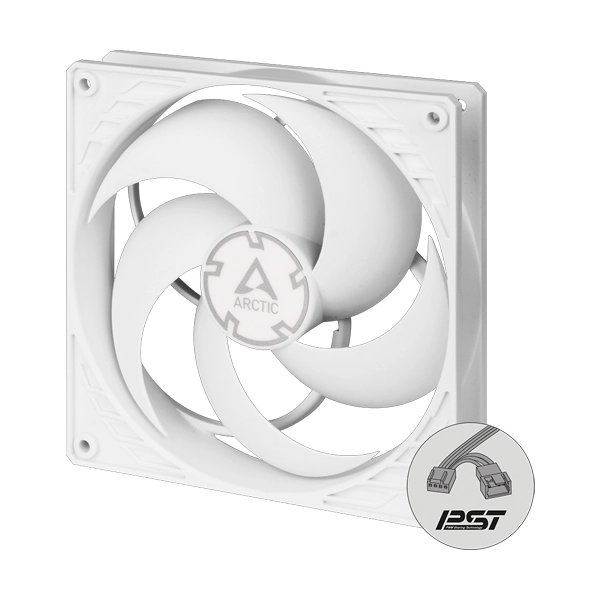

Arctic P14 PWM PST White Case Fan
FEATURES
Optimized for High Static Pressure
The new P14 PWM PST is engineered with a focused airflow design to deliver high static pressure for superior cooling performance. It efficiently handles increased air resistance, making it ideal for heatsinks, radiators, and high-performance PC cooling setups.
Advanced Energy-Efficient Technology
Powered by a next-generation PWM IC motor, the P14 PWM PST operates more efficiently than previous models. This advanced design reduces power consumption while maintaining excellent cooling performance.
Ultra-Quiet Operation & Low Vibration
Even at low fan speeds, the advanced ARCTIC motor operates with minimal noise. Thanks to sinus-magnetizing technology, vibration levels are reduced to around 5% compared to standard DC motors, delivering smoother and quieter performance without requiring rubber spacers.
Extended Fan Lifespan
Lower motor temperatures significantly improve fan longevity. With highly efficient ARCTIC motor technology and reduced coil temperatures, the P14 PWM PST offers enhanced durability and long-term reliability, backed by a 6-year manufacturer warranty.
200–1700 RPM PWM PST Control
The P14 PWM PST features a wide 200 to 1700 RPM speed range with PWM Sharing Technology (PST) for synchronized fan control across multiple fans. This ensures quiet operation during low loads and maximum cooling performance when required.
Premium Quality Bearing
A high-quality bearing system using a German-engineered alloy and lubricant combination reduces friction for improved efficiency. This design minimizes heat buildup and bearing noise while extending overall fan lifespan.
Flexible Two-Way Installation
- Exhaust warm air out of the PC case
- Intake cool air into the system for improved airflow and cooling performance
SPECIFICATION
| Brand | Arctic |
| Model | ACFAN00197A |
| Product Name | ARCTIC P14 PWM PST White |
| Product Type | 140mm PWM Case Fan |
| Fan Size | 140 mm |
| Dimensions | 140 × 140 × 27 mm |
| Bearing Type | Fluid Dynamic Bearing (FDB) |
| Speed Range | 200 – 1700 RPM |
| Fan Control | PWM Controlled |
| PWM Technology | PWM Sharing Technology (PST) |
| 0dB Mode | Yes |
| Maximum Airflow | 72.8 CFM / 123.76 m³/h |
| Static Pressure | 2.40 mmHâ‚‚O |
| Noise Level | 0.3 Sone |
| Connector Type | 4-Pin PWM + PST Connector |
| Rated Voltage | 12V DC |
| Starting Voltage | 3.9V |
| Rated Current | 0.12A |
| Cable Length | 400 mm |
| Blade Design | Pressure-Optimized Fan Blades |
| Installation Type | Push / Pull Configuration |
| Operating Temperature | 0°C to 40°C |
| Application | PC Cases, Radiators, CPU Coolers |
| Compatibility | Gaming PCs, Workstations, Liquid Cooling Systems |
| Included Accessories | 4 × Fan Mounting Screws |
| Warranty | 6 Years |
| Note | * Features, Price, Specifications are subject to change without notice. |
